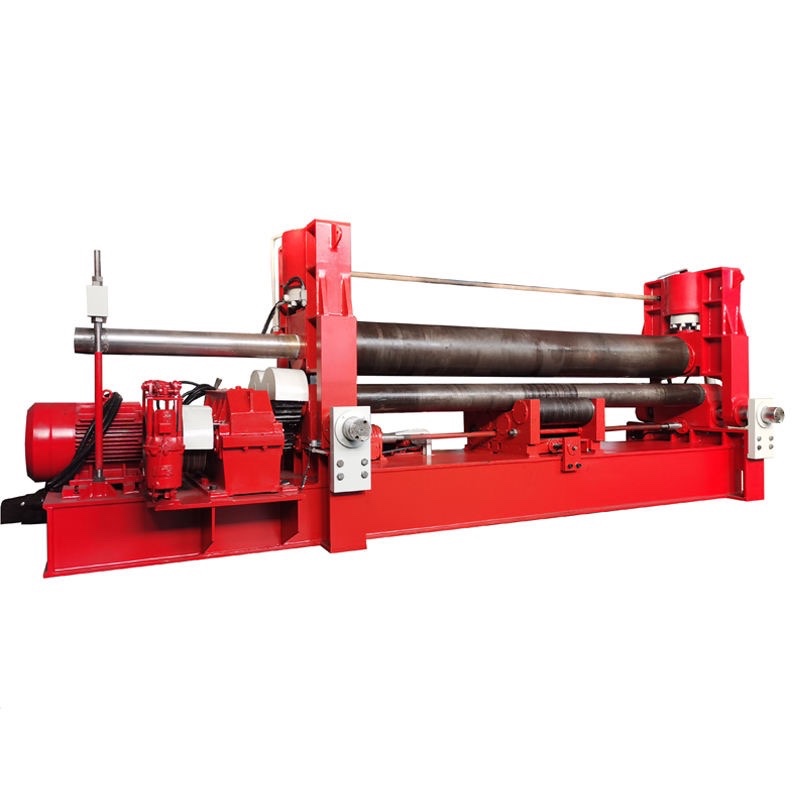

W11S 3-roller upper roller universal hydraulic rolling machine

1. Roller: 3 rollers
2. Product Type: hydraulic
3. Roll Material:42CrMo
4. Hydraulic System:YUKEN from Japan
5. Feature:Prebending Function, Cone Bending, Rich Shape bending

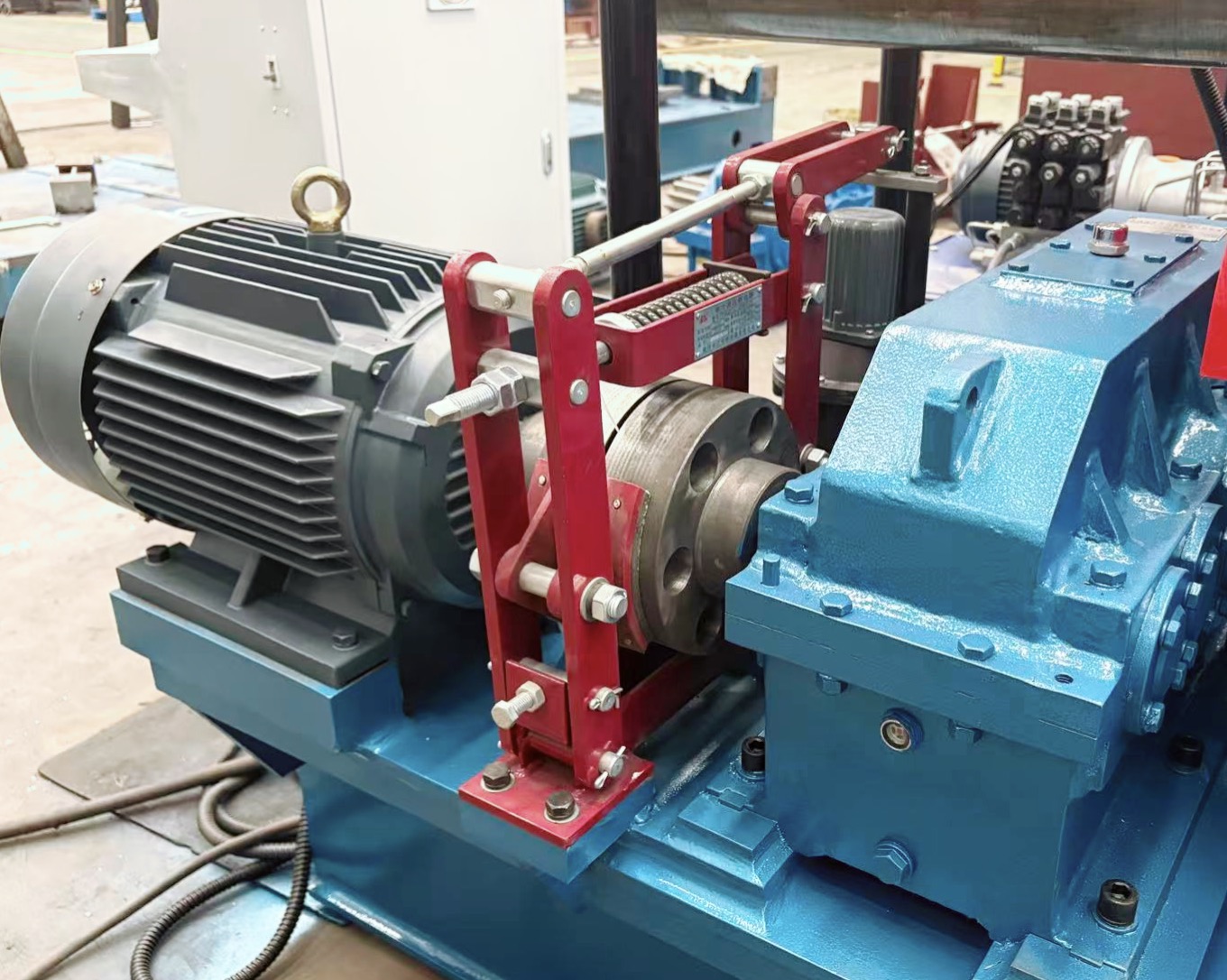

6. Reducer: Hardened surface reducer

12300USD-18000USD

Product Description:

W11S 3-roller upper roller universal hydraulic rolling machine

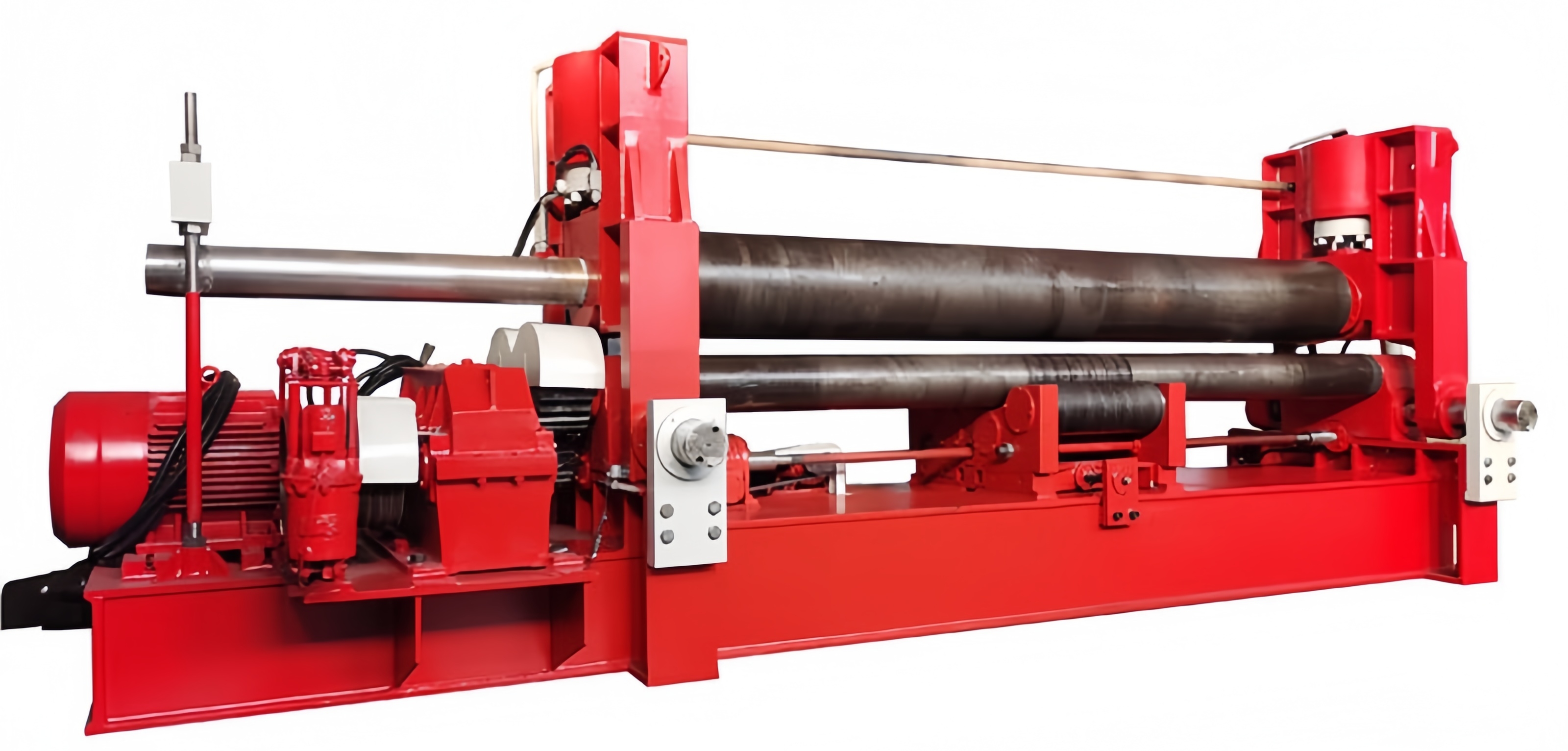

rolling machine.jpg

W11S plate rolling machine features hydraulic lifting, mechanical horizontal movement, and centralized electrical control. It supports pre-bending, rolling, and leveling, saving material and offering optional NC system control for higher automation.

Product Features

1. Special bending craft,high precision pre-bending of the edge,digital control for bending process.

2. Rich shape bend such as O,U,R etc.

3. Cone bending device for conical bend easily.

4. Whole chassis,simple ground foundation,it's convenient to move the workplace.

5. According to the role or requirement of customer,economic digital display type or TNC digital control type is optional.

6. CE certificate.

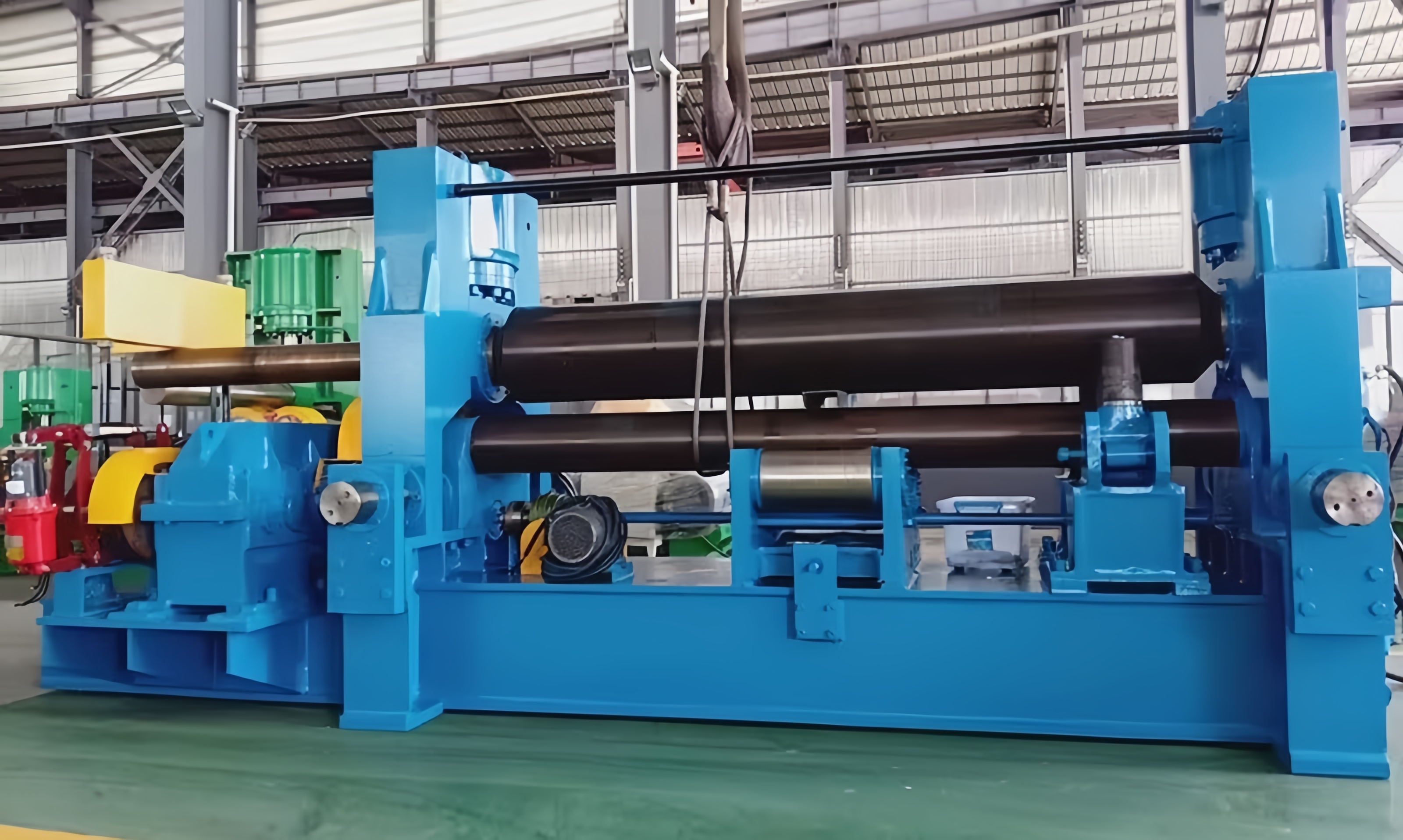

plate rolling machine.jpg

High Precision End Pre-bending

End pre-bending allows adjustable straight edge length with high precision under specific pressure.

Superior Product Precision

Continuous bending and precise end pre-bending result in high-precision products. The upper roller's drum shape and adjustable supporting rollers ensure ideal results for both thin and thick plates.

NC Control for High Efficiency

Simplified operation and one-person handling significantly boost production efficiency.

Versatile Bending Shapes

Supports various shapes:

O-shape: Rear bending

U-shape: Front bending

Special bending: Combined methods.

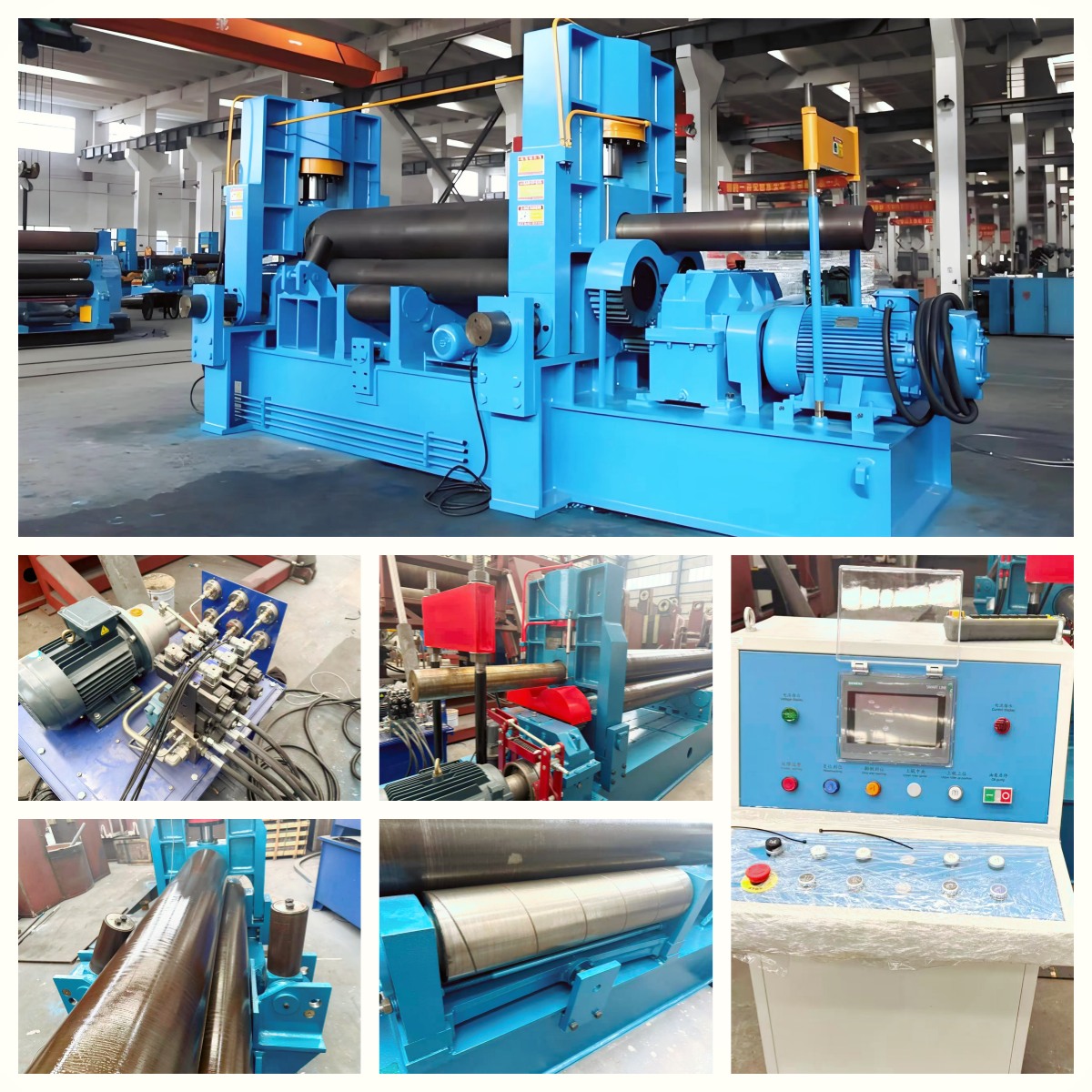

sheet rolling machine.jpg

Model	Max. thickness of plate (mm)	Thickness of pre-bending (mm)	Max. width of plate (mm）	Dia. of upper roller (mm）	Dia. of lower roller (mm）	Center distance of lower roller (mm）
W11S-8x2000	8	6	2000	235	135	180
W11S-8x2500	8	6	2500	245	145	200
W11S-12x2000	12	10	2000	255	150	200
W11S-12x2500	12	10	2500	270	150	245
W11S-12x3000	12	10	3000	300	165	300
W11S-16x2000	16	13	2000	270	150	245
W11S-16x2500	16	13	2500	300	165	270
W11S-16x3000	16	13	3000	350	180	300
W11S-20x2000	20	16	2000	300	165	270
W11S-20x2500	20	16	2500	330	180	300

Product Details

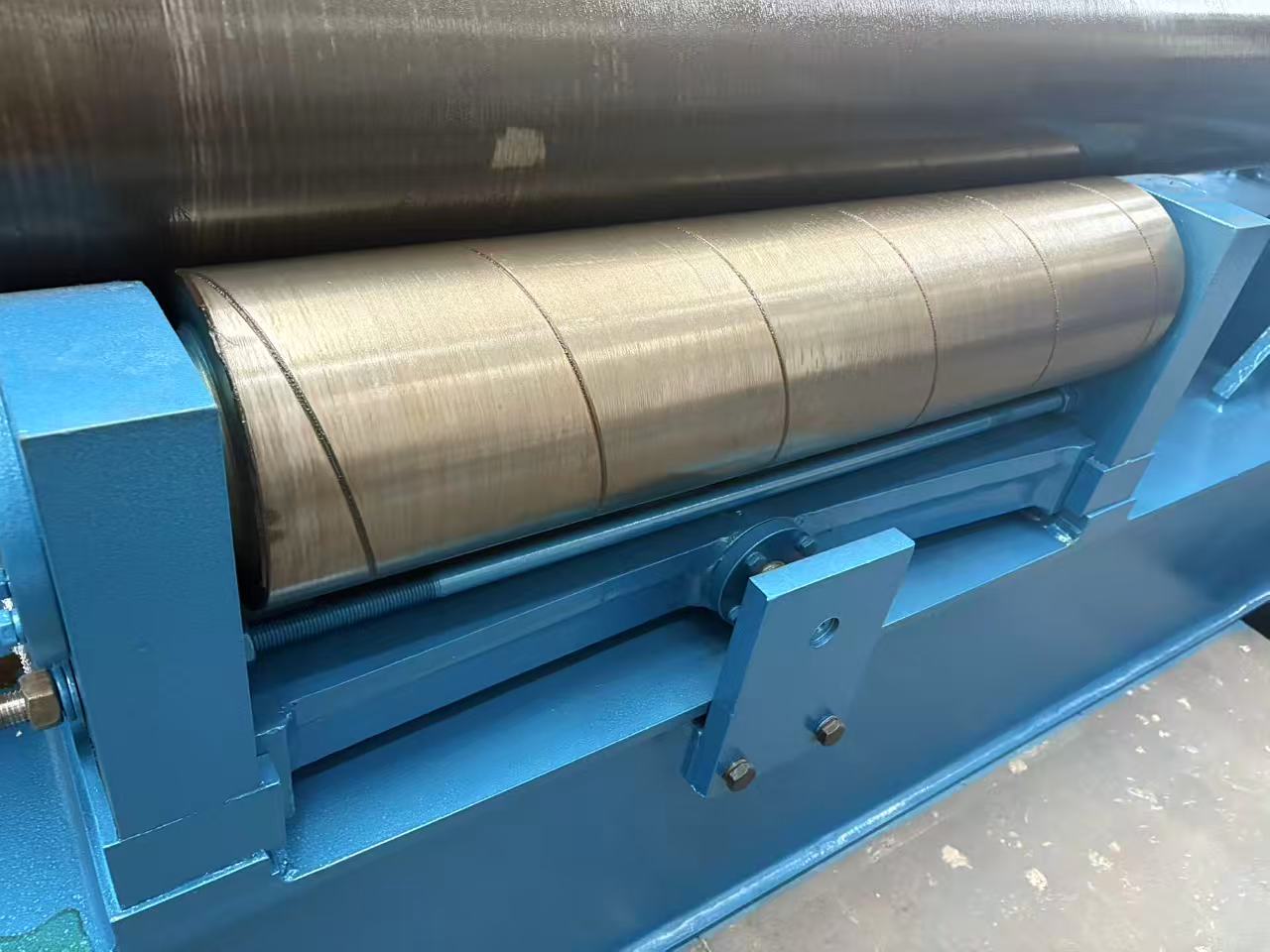

HARDENED ROLLS WITH 42CrMo MATERIAL

● The top roller is designed as drum shape.

● Support roller install in the lower of bottom roller to help bend a perfect cylinder from thin to thick plate.

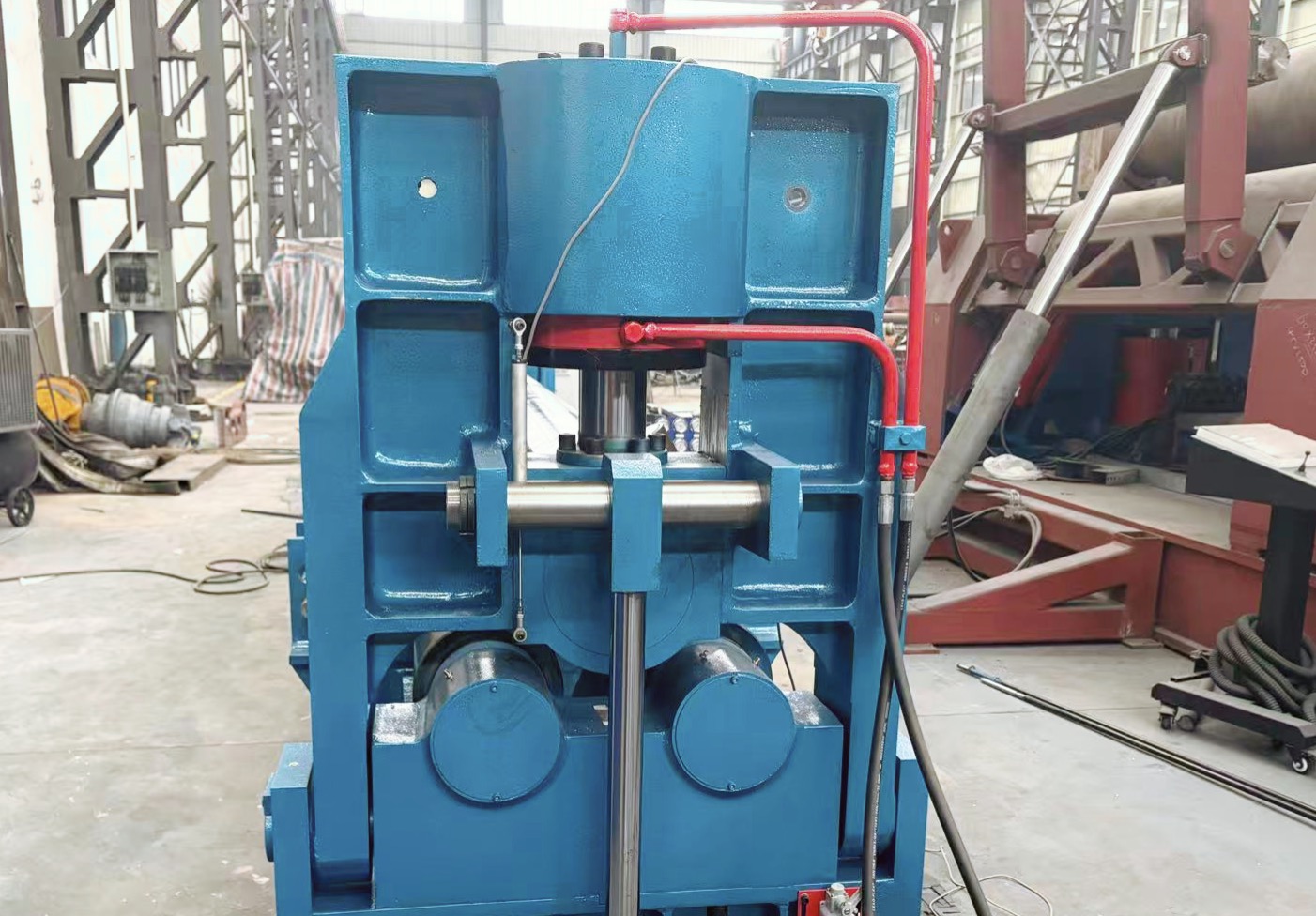

MOVING AXIS AND OVERTURNING DEVICE

● Can achieve pre-bending of the sheet, reducing.

● Pre-bending of the sheet can be achieved, reducing the amount of straight edges

● Opening the overturning device, it's easy to remove the workpieces.

HYDRAULIC SYSTEM

● Through exclusive technology, it can develop cones as easily as competitive machines can develop cylinders.

● It eliminates scarring on the surface of shell or roll and also eliminates, in most cases, the need for grinding the lamination(bullnosing) on the minor diameter edge.

● Yuken valve made in Japan.

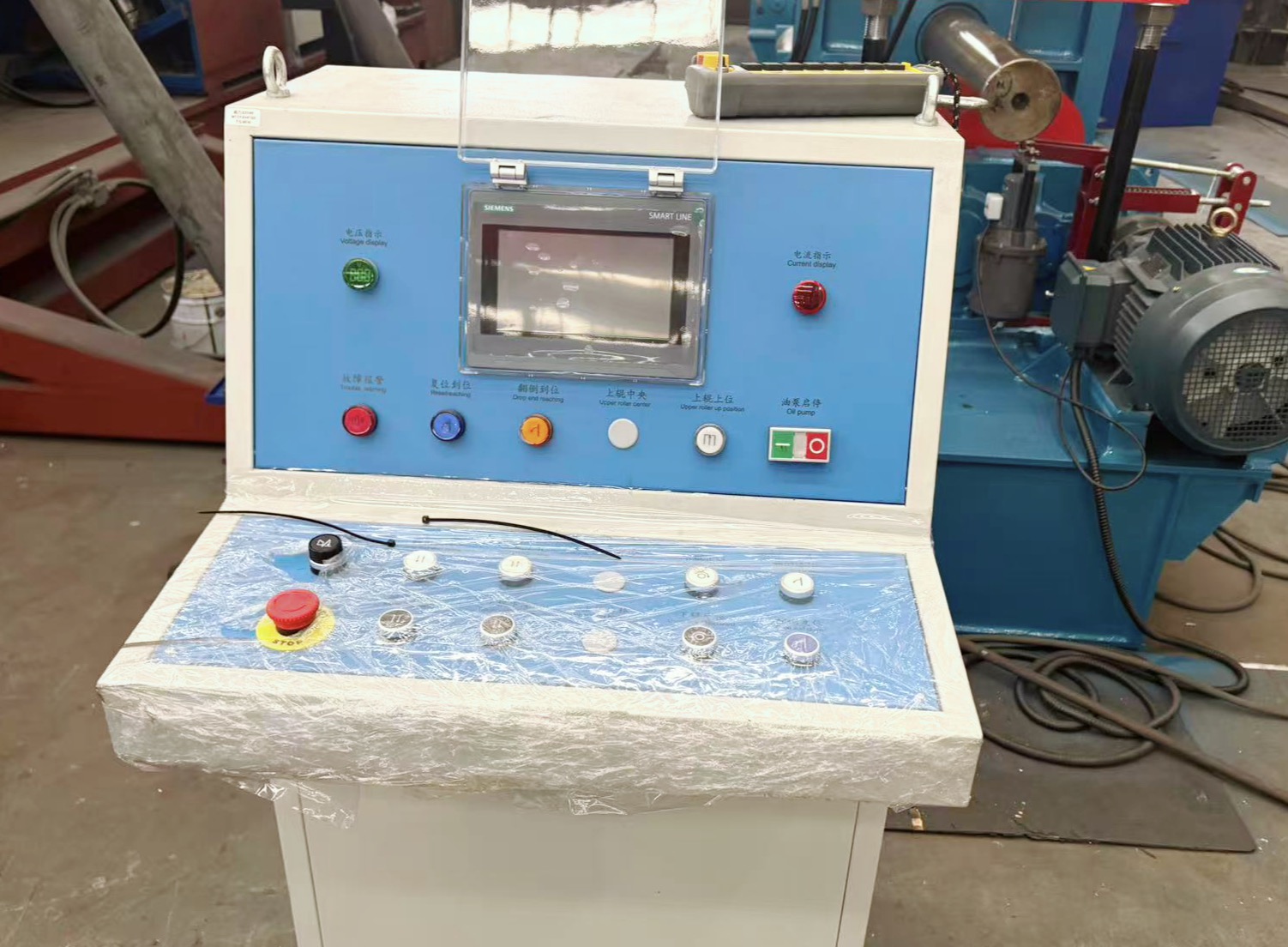

W11S control.jpg
