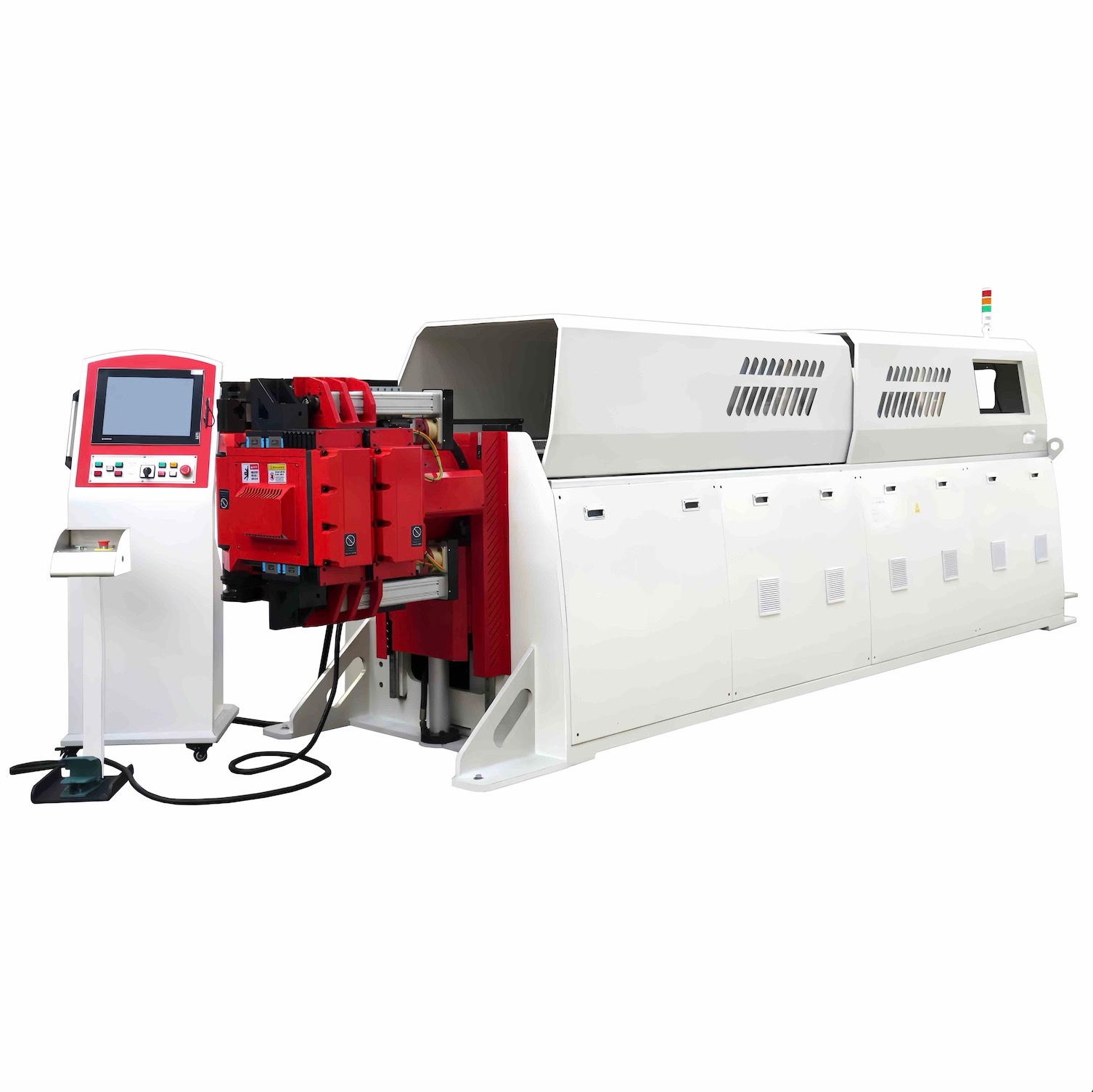

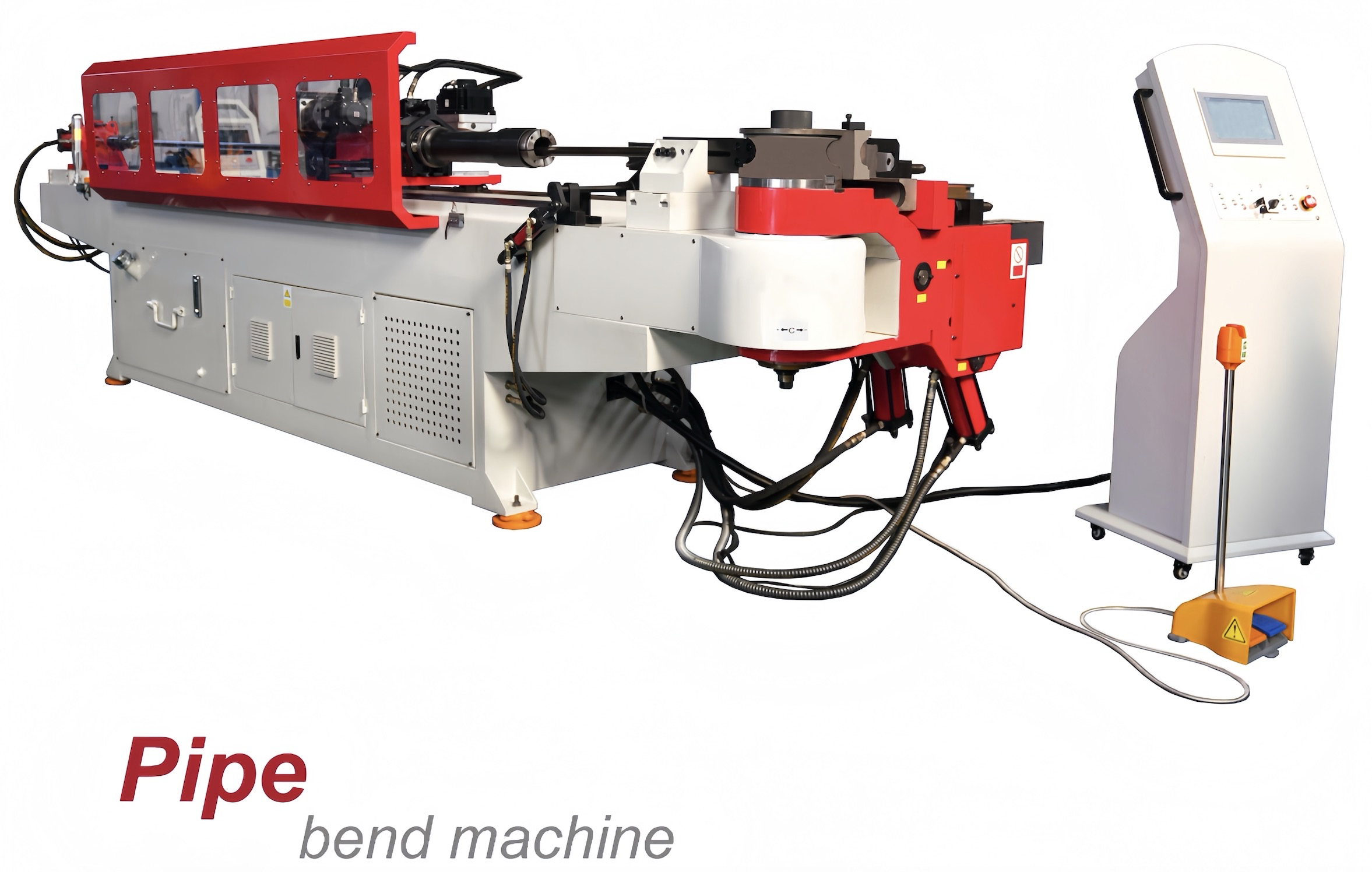

CNC-5A-MSV hydraulic tube bending machine

1. Fully automatic
2. Can punching hole on pipe
3. Equipped with 5 servo
4. Multiple groups pipe-bending

16000USD-32000USD

Product Description:

50CNC-5A-MSV hydraulic tube bending machine

CNC Automatic pipe bending machine It can monitor the whole operation range of beam and cutting parts, and make the period stop by quick feedback. Fixed limit of double protection, can greatly improve equipment and personal safety, reduce the risk of customer use.

PLC & IPC intelligent system Comprehensive abnormal alarm, which can be pushed to the interface through the control center, can be detected in advance, reduce hidden dangers, and improve the effect of equipment abnormal detection.

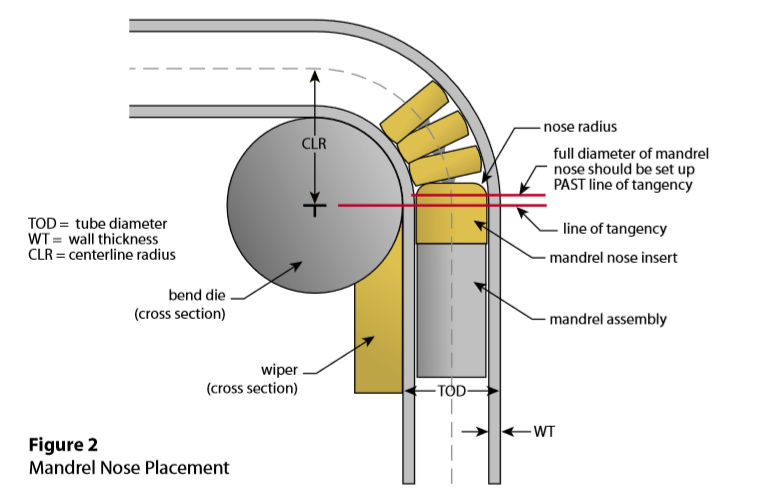

How to choose the pipe bending machine model?


Please tell us that the wall thickness of tube.
Please tell us that the outer diameter for tube.
Please tell us that the centerline radius of workpiece.
Please tell us that the tube material.
If you have the workpiece drawing, hope you can send us. So that we can provide the right machine for you.

Thank you very much!

Item	Max. Bending Capacity (mm)	Bending Degree	Mandrel Length (mm)	Bending Accuracy
DW38CNC	38x2	190	3000	±0.05°
DW50CNC	50x2		3000
DW63CNC	63x3		3200
DW75CNC	75x4		3600
DW89CNC	89x5		3700
DW100CNC	100x6		3700
DW115CNC	115x6		4200
DW130CNC	130x8		4200
DW168CNC	168x12		6000

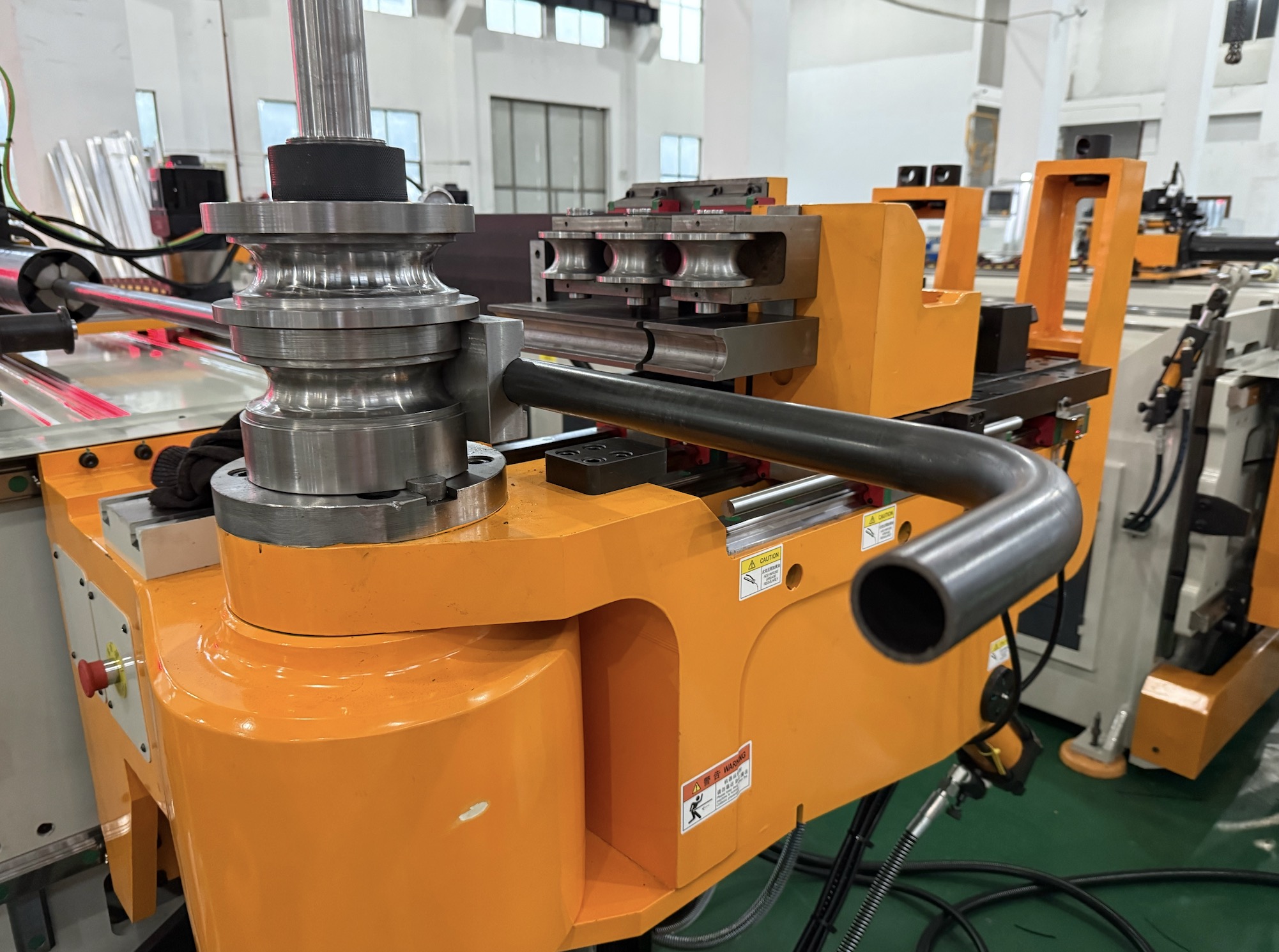

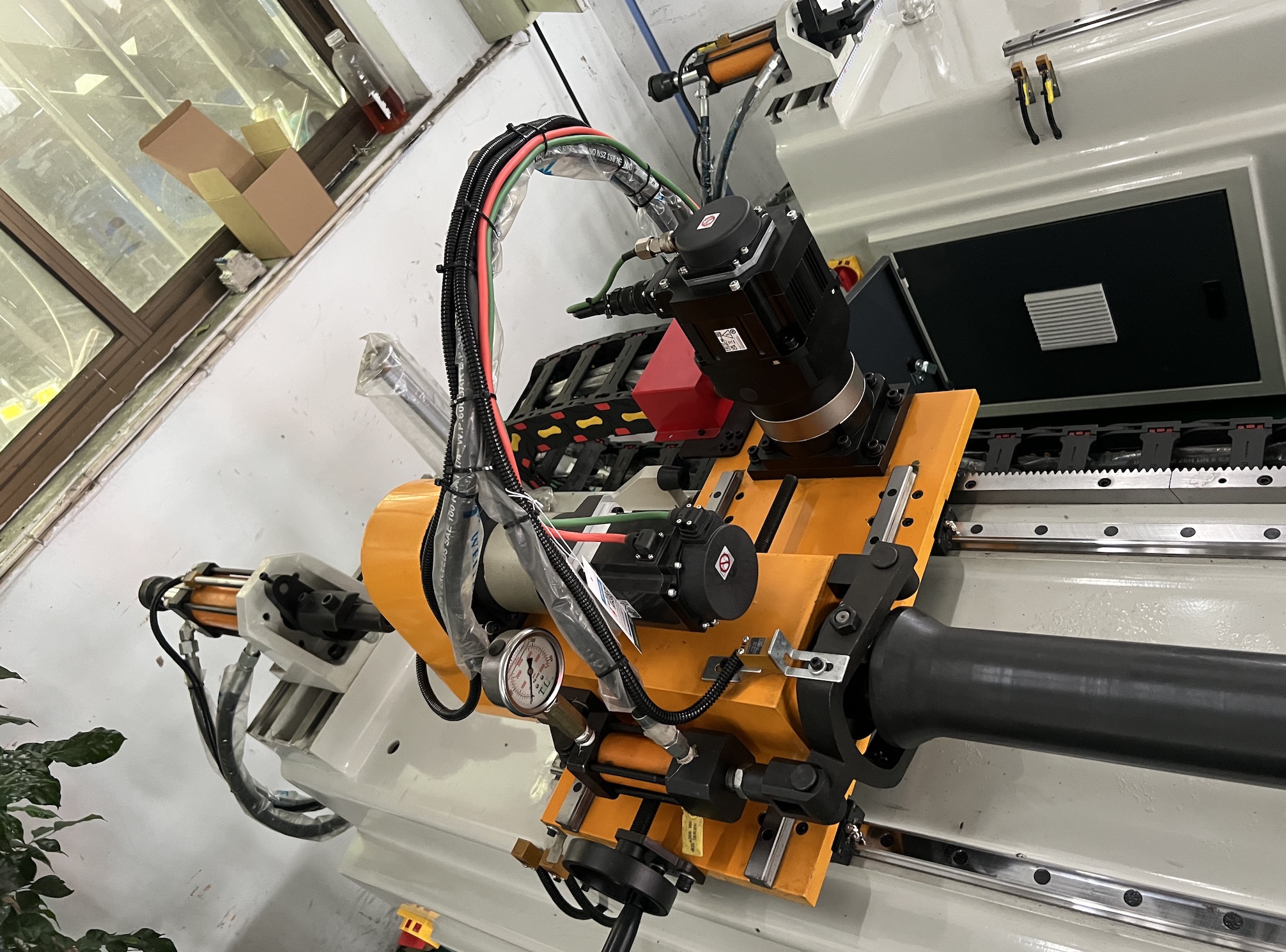

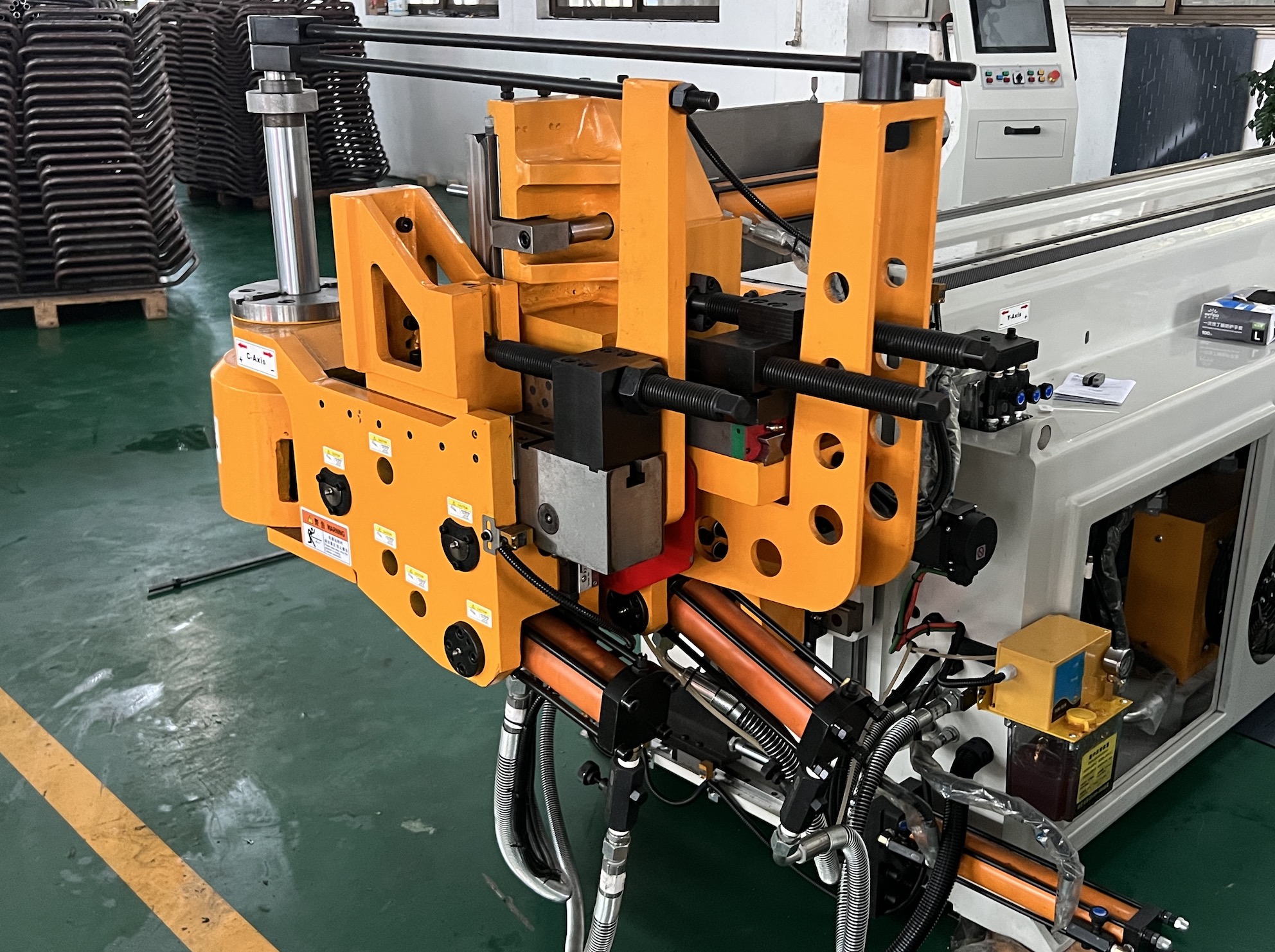

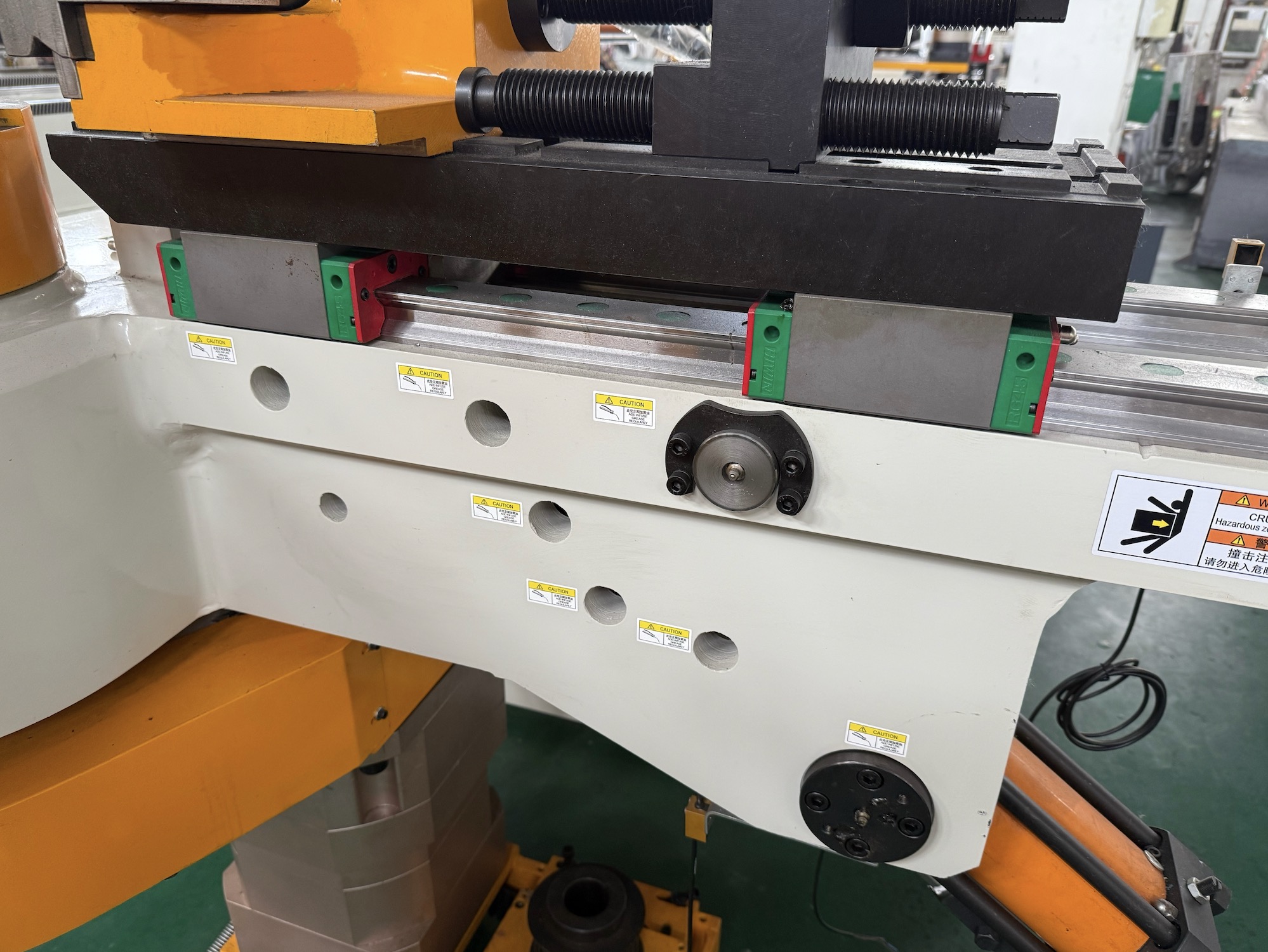

Product Detailes

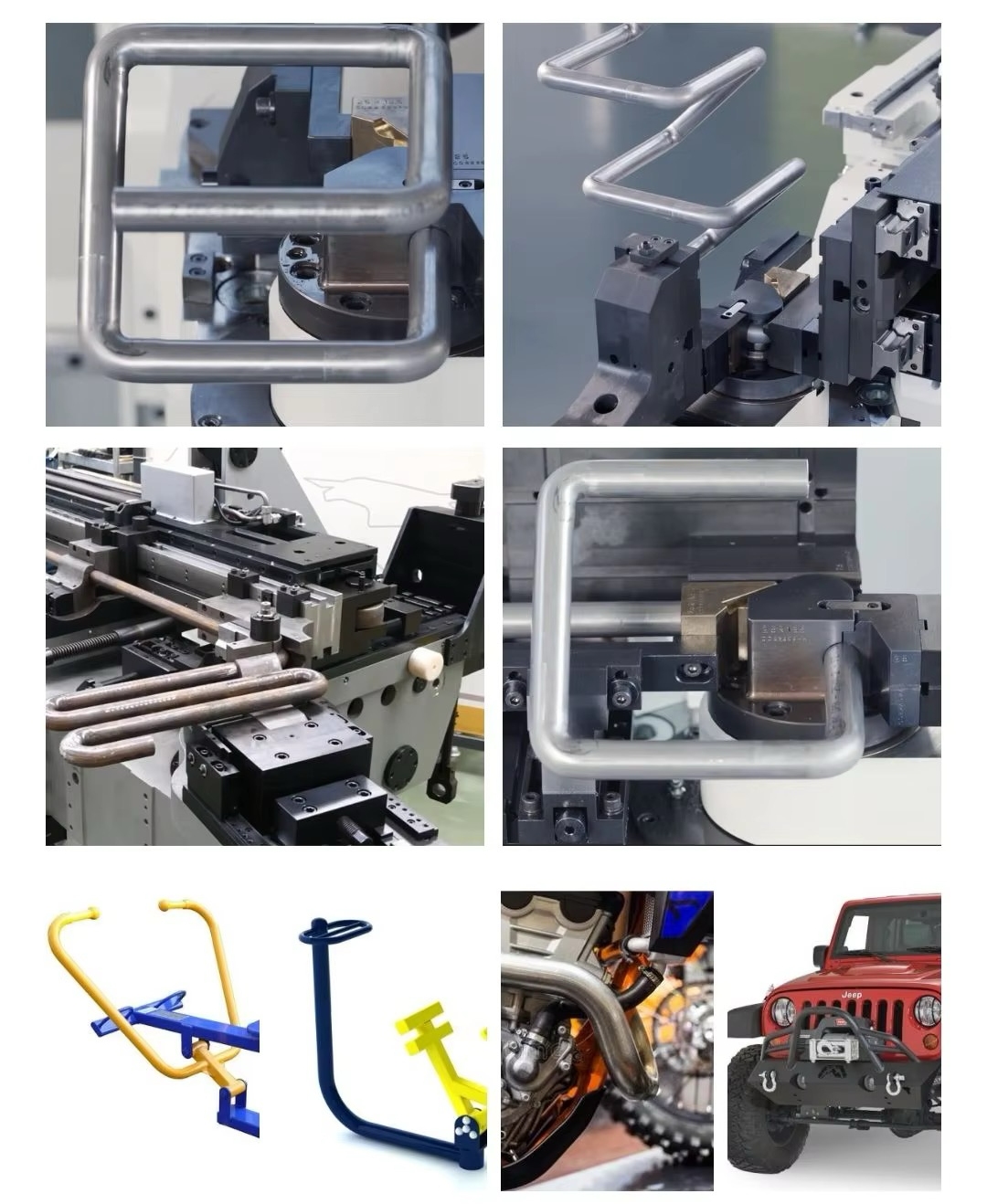

Industry application

Widely used in sports equipment, all kinds of pipe, water pipe, oil pipe and other industries, suitable for all kinds of special-shaped pipe such as: round pipe, square pipe, rectangular pipe, oval pipe, etc.

Take the petroleum industry for example, the main route of petroleum transportation is pipeline, and due to the nature of the oil itself, high-quality pipelines are required.

The fiber pipe bending machine can realize the multi-angle precision machining of pipeline and meet the demand of oil transportation.
